CARBIDE INSERT DRAG BITS are ideal for drilling in soft to medium hard
formations when conditions do not warrant the use of tri-cone bits.
Our Carbide Insert Drag Bits are designed for a variety of applications
including seismic exploration, soil sampling, mining and construction.
We recommend the use of CARBIDE INSERT DRAG BITS on shallow hole
applications such as blast hole drilling. STEP-TYPE DRAG BITS are
effective in drilling soft and unconsolidated material. They are available
in sizes ranging from 3 7/8" through 12 ¼". This design offers fast pe-
netration and requires only moderate drilling weight for proper operation.
A large fluid/air flushing hole is incorporated into our STEP TYPE BITS
for efficient removal of cuttings.
CHEVRON-TYPE DRAG BITS are suggested for drilling in medium to me-
dium hard and consolidated formations. Best suited for abrasive conditions,
our VRON-TYPE BITS are available in sizes ranging from 1 7/8" to 8".
Additional weight may be required for effective operation. Superior design,
premium carbide and rugged construction of CARBIDE INSERT DRAG BITS
ensure effective scraping action for maximum drilling performance in a
variety of formations.

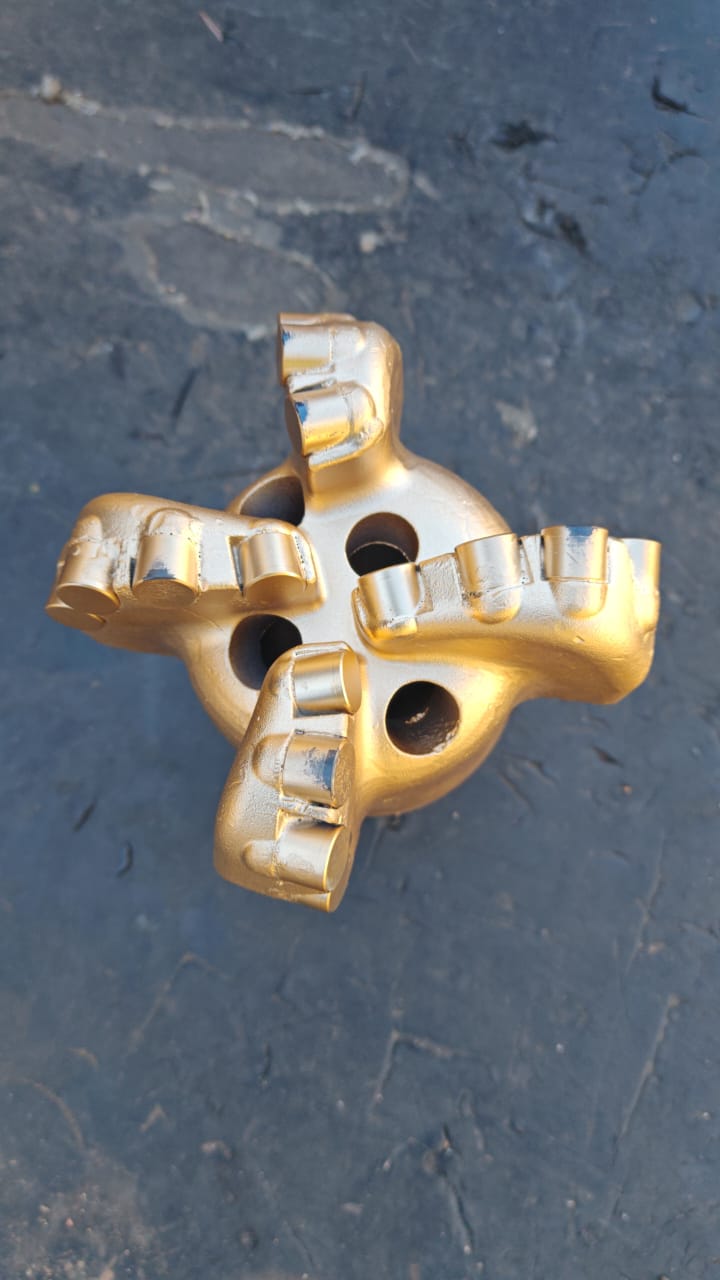

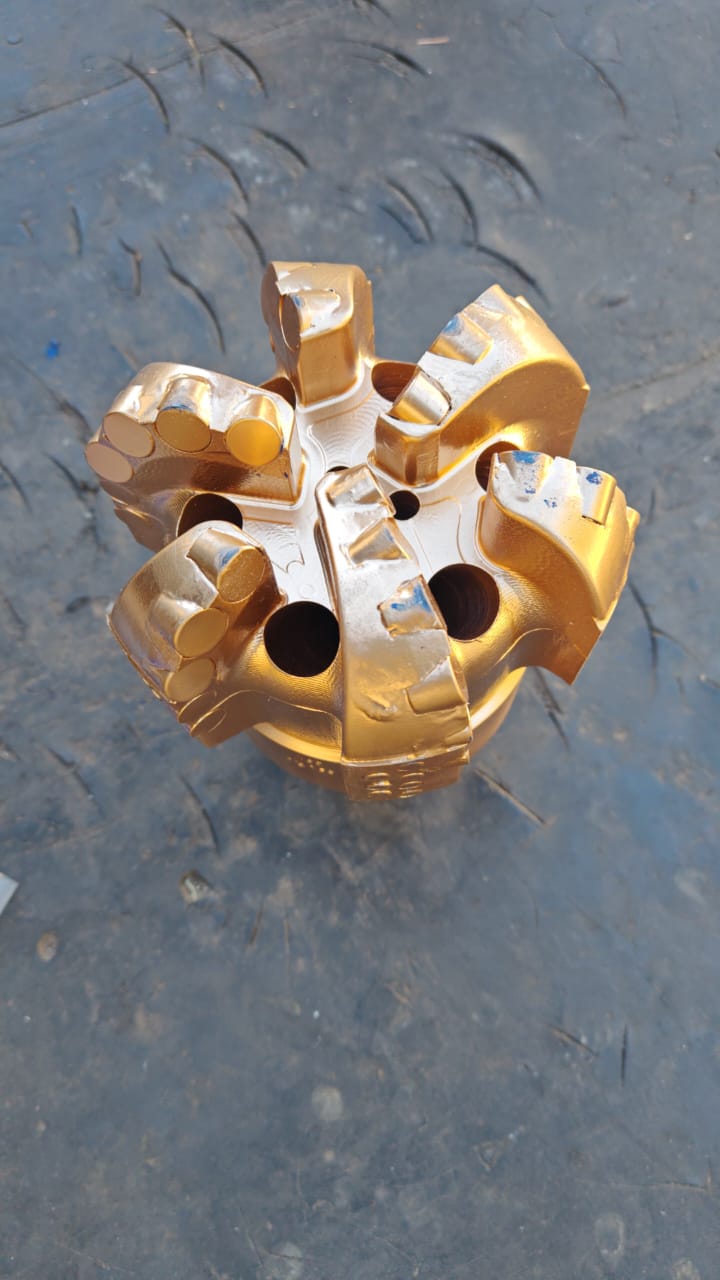

OIL FIELD-TYPE DRAG BITS are specially designed by PDC Steel & Matrix
SPECIFICATIONS:
|
Size Range Pin Thread Connection Approximate
Weight
1 7/8" - 2" A, AW 2 lbs
2" - 2 ¾" A, AW, N 4 lbs
3" - 3 7/8" N, 2 3/8" API 8 lbs
4" - 4 7/8" 2 3/8" API 10 lbs
5" - 5 7/8" 2 3/8" API 18 lbs
6" - 6 ¾" 2 3/8" API, 3 ½" API 23 lbs
7" - 7 7/8" 3 ½" API, 4 ½" API 25 lbs
8" - 8 7/8" 3 ½" API, 4 ½" API 30 lbs
9" - 9 7/8" 3 ½" API, 4 ½" API 40 lbs
10" - 10 7/8" 4 ½" API 45 lbs
11" - 12" 4 ½" API 48 lbs
12 ¼" 4 ½" API 50 lbs
